Waste Slag Resource Utilization Processing Line
Designed for municipal solid waste (MSW) incineration bottom ash recycling, the production line efficiently recovers ferrous and non-ferrous metals while producing high-quality recycled aggregates for eco-friendly construction materials, maximizing resource recovery and minimizing landfill disposal.
Waste Slag Resource Utilization Processing Line
With the rapid growth of the Municipal Solid Waste (MSW) Waste-to-Energy (WTE) industry, Incineration Bottom Ash (IBA) has become one of the major solid by-products generated during the waste incineration process. Bottom ash typically accounts for 10%–30% of the total waste incinerated and mainly consists of slag, glass, ceramics, sand, stones, metals, and small amounts of unburned organic matter.
Bottom ash contains valuable recyclable metals such as iron, copper, aluminum, and stainless steel, while its non-metallic fraction possesses excellent physical properties that make it an ideal raw material for producing environmentally friendly construction materials. Through advanced recycling and separation technologies, bottom ash can be effectively processed to achieve waste reduction, harmless treatment, and resource recovery, significantly reducing landfill disposal, improving resource utilization, and promoting the development of a circular economy.
Runding Intelligent specializes in complete Waste Slag Recycling Solutions, providing one-stop turnkey EPC services covering process design, equipment manufacturing, installation, commissioning, technical support, and operation services. We help Waste-to-Energy plants maximize resource recovery, improve operational efficiency, and create greater environmental and economic value.
Bottom ash contains valuable recyclable metals such as iron, copper, aluminum, and stainless steel, while its non-metallic fraction possesses excellent physical properties that make it an ideal raw material for producing environmentally friendly construction materials. Through advanced recycling and separation technologies, bottom ash can be effectively processed to achieve waste reduction, harmless treatment, and resource recovery, significantly reducing landfill disposal, improving resource utilization, and promoting the development of a circular economy.
Runding Intelligent specializes in complete Waste Slag Recycling Solutions, providing one-stop turnkey EPC services covering process design, equipment manufacturing, installation, commissioning, technical support, and operation services. We help Waste-to-Energy plants maximize resource recovery, improve operational efficiency, and create greater environmental and economic value.

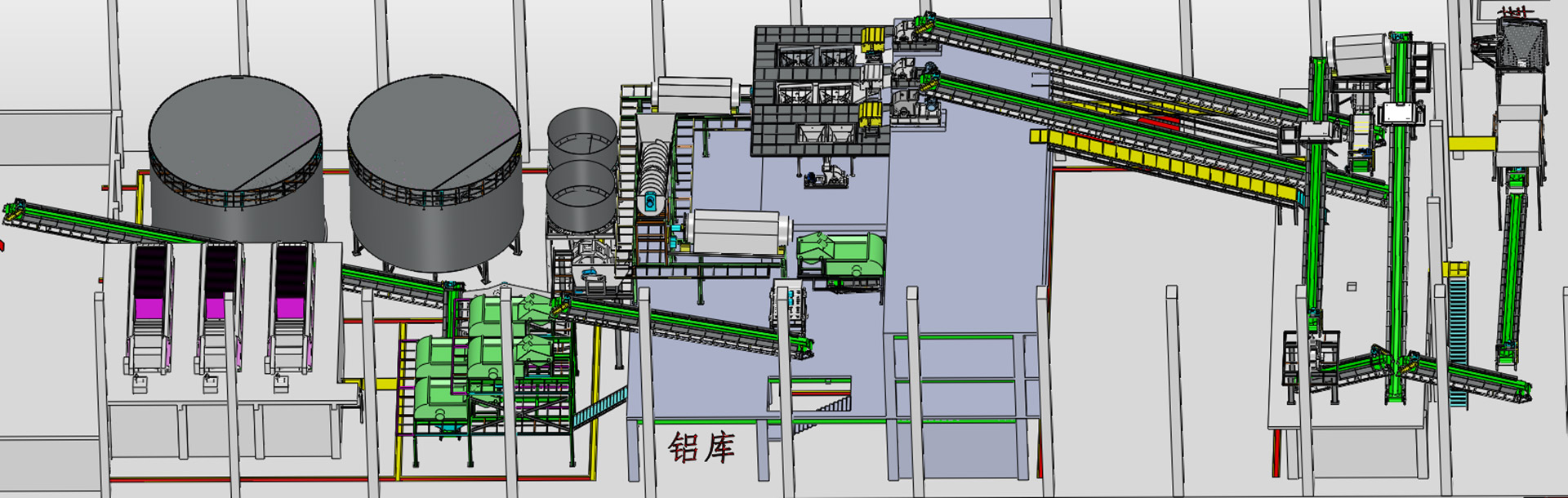

Waste slag Recycling Process
1. Raw Material Receiving
Waste slag from Municipal Solid Waste (MSW) Waste-to-Energy plants is delivered to the receiving yard by transport vehicles and transferred to the feeding system using grab cranes or loaders, ensuring continuous and stable material feeding.2. Pre-screening
A trommel screen or vibrating screen is used to classify the bottom ash by particle size and remove oversized debris, improving the efficiency of downstream separation processes.3. Magnetic Separation
High-intensity magnetic separators recover ferrous metals such as scrap steel and iron, maximizing the recovery of valuable magnetic materials.4. Crushing
Large bottom ash particles are crushed to fully liberate embedded metals from mineral aggregates, significantly improving metal recovery efficiency.5. Multi-stage Metal Recovery
Advanced separation technologies, including eddy current separators, jigging systems, shaking tables, and gravity separation, are employed to efficiently recover aluminum, copper, stainless steel, and other non-ferrous metals with high purity.6. Aggregate Cleaning
The remaining mineral aggregates are cleaned through wet washing and screening processes to remove light impurities such as plastics, wood fragments, and organic materials, producing clean, high-quality recycled aggregates.7. Dewatering & Water Recycling
Process wastewater is treated through sedimentation and filtration before being recycled back into the production system, achieving a closed-loop water circulation system, minimizing wastewater discharge, and reducing operating costs.8. Finished Product Storage
After processing, the recovered materials are classified and stored separately as value-added products, including:Ferrous Metals, Aluminum, Copper and Other Non-ferrous Metals, Coarse Aggregates, Medium Sand, Fine Sand, Sludge.
All recovered products are stored separately and can be sold directly or utilized as raw materials for manufacturing environmentally friendly construction materials.
Equipment Introduction
Feed Hopper
Belt Conveyor
Trommel Screen
Twin-Shaft Shredder
Electromagnetic Iron Remover
Hammer Crusher
Counter-Current Wet Magnetic Separator (Wet Iron Remover)
Metal Shredder
Jig Machine
Eccentric Eddy Current Separator (Aluminum Ejector)
Vibrating Screen
Sand Water Separator
Precision Sand Settling Machine
Membrane Filter Press
PLC Automation Equipment
Scraper Conveyor
Feed Hopper
It is a feeding equipment used before material conveying.
Equipment Overview
Identical to the general introduction above: The feed hopper serves as the feeding equipment installed ahead of material conveying procedures.
Working Principle
During furnace slag pretreatment, grab buckets transfer raw materials into the hopper. The feeding volume can be adjusted via variable speed motors according to actual production capacity. Materials are released onto the belt conveyor and sent into the follow-up production line.
Equipment Parameter
| Equipment Name | Model | Specification | Volume | Power | Quantity |
|---|---|---|---|---|---|
| Feed Hopper | LD5040 | Inlet: 5000mm×4000mm, Outlet: 5000mm×800mm | 10 m³ | 7.5KW | 1 Set |
Belt Conveyor
It is a closed-loop conveying machine with a belt wrapped around head and tail rollers, supported by upper and lower idlers for bearing and traction. Power is transmitted through friction generated between driving unit and conveyor belt to complete material transportation, widely applicable for bulk material transfer.
Equipment Overview
Identical to the general introduction above: The belt conveyor forms a closed loop by wrapping the belt around head and tail rollers with upper & lower supporting idlers. It relies on friction between driving device and belt to transfer power, realizing continuous material transportation for various bulk materials.
Core Equipment Features
1. Large Conveying Capacity & Low Energy Consumption
Simple structure with standardized spare parts for quick maintenance. Based on friction drive principle, it features large throughput, long conveying distance, stable running and low power consumption.2. Stable Transport & Wide Adaptability
Adopts high-quality components for smooth conveying; no relative sliding between materials and belt to avoid product damage. Operating ambient temperature ranges from -20℃ to +40℃, suitable for materials below 50℃.3. Sealed Design, Safe & Eco-friendly
Housing made of seamless steel pipes connected by flanges for high rigidity and perfect sealing. It supports deodorization, heating and cooling of materials during conveying, meeting environmental protection and safety standards.
Equipment Parameter
| No. | Model | Spec (W×L×H) | Sealed & Dust Removal | Power | Quantity |
|---|---|---|---|---|---|
| 1 | CSD1000 | 1m×7m×0.7m | Yes | 7.5KW | 1 Set |
| 2 | CSD800 | 0.8m×17m×0.7m | Yes | 7.5KW | 1 Set |
| 3 | CSD800 | 0.8m×6m×0.7m | Yes | 5.5KW | 1 Set |
| 4 | CSD800 | 0.8m×12m×0.7m | Yes | 5.5KW | 1 Set |
| 5 | CSD800 | 0.8m×9m×0.7m | Yes | 5.5KW | 1 Set |
| 6 | CSD800 | 0.8m×19m×0.7m | Yes | 7.5KW | 1 Set |
| 7 | CSD800 | 0.8m×14m×0.7m | Yes | 5.5KW | 1 Set |
| 8 | CSD800 | 0.8m×18m×0.7m | Yes | 7.5KW | 1 Set |
| 9 | CSD800 | 0.8m×18m×0.7m | Yes | 7.5KW | 1 Set |
| 10 | CSD800 | 0.8m×8m×0.7m | Yes | 5.5KW | 1 Set |
| 11 | CSD800 | 0.8m×15m×0.7m | Yes | 5.5KW | 1 Set |
| 12 | CSD800 | 0.8m×20m×0.7m | Yes | 7.5KW | 1 Set |
| 13 | CSD650 | 0.65m×11m×0.7m | Yes | 5.5KW | 1 Set |
| 14 | CSD800 | 0.8m×10m×0.7m | Yes | 5.5KW | 1 Set |
| 15 | CSD800 | 0.8m×16m×0.7m | Yes | 5.5KW | 1 Set |
| 16 | CSD800 | 0.8m×20m×0.7m | Yes | 5.5KW | 1 Set |
| 17 | CSD650 | 0.65m×5m×0.7m | Yes | 5.5KW | 1 Set |
| 18 | CSD650 | 0.65m×21m×0.7m | Yes | 5.5KW | 1 Set |
| 19 | CSD800 | 0.8m×6m×0.7m | Yes | 5.5KW | 1 Set |
| 20 | CSD800 | 0.8m×7m×0.7m | Yes | 5.5KW | 1 Set |
| 21 | CSD800 | 0.8m×55m×0.7m | Yes | 15KW | 1 Set |
| 22 | CSD800 | 0.8m×20m×0.7m | Yes | 7.5KW | 1 Set |
Trommel Screen
It classifies materials by particle size for medium and fine fraction screening. It features stable operation, low power consumption, easy maintenance and flexible, simple process layout.
Equipment Overview
Identical to the general introduction above: The trommel screen grades bulk materials based on particle size, suitable for medium & fine material classification. It delivers stable running, low energy loss, simple maintenance and flexible layout design for mineral processing lines.
Core Equipment Features
1. Stable Operation & High Reliability
Innovative internal frame design with self-cleaning device inside the drum eliminates screen mesh clogging when screening wet materials, improving output and reliability. The roller adopts integrated through-shaft support for smooth, low-noise running. Full sealed or open structures are optional; fully enclosed type realizes dust-free production.2. High Screening Efficiency & Wide Material Adaptability
High separation efficiency with output particle size ranging from 3mm to 100mm. It handles sticky, high-moisture, dirty and mixed materials flexibly. Low rotating speed ensures stable running and easy large-scale customization.3. Easy Operation & Long Service Life
Stable and reliable operation with simple layout, convenient installation and maintenance. Multiple feeding modes support mass production. Central screen mesh uses annular flat steel frame for superior wear resistance and extended service life.
Equipment Parameter
| Model | Spec (L×D) | Screen Aperture | Output Capacity | Application | Power | Quantity |
|---|---|---|---|---|---|---|
| GL5018A | 5m×1.8m | 100mm | 60 T/H | Coarse bulk materials | 7.5KW | 1 Set |
| GL6015B | 6m×1.5m | 3mm | 30 T/H | Post-jigging material | 7.5KW | 2 Sets |
| GL6015C | 6m×1.5m | 5mm | 40 T/H | Post-jigging material | 7.5KW | 2 Sets |
| GL5012D | 5m×1.2m | 5mm | 30 T/H | Post-jigging material | 5.5KW | 1 Set |
| GL4512E | 4.5m×1.2m | 30mm | 50 T/H | Post-crushing material | 5.5KW | 2 Sets |
| GL4512F | 4.5m×1.2m | 5mm | 30 T/H | Post-metal crushing | 5.5KW | 1 Set |
| GL2008G | 2m×0.8m | 3mm | 3 T/H | Stainless steel scraps | 2.2KW | 1 Set |
| GL1508H | 1.5m×0.8m | 8mm | 1 T/H | Pre-shaking table feeding | 1.5KW | 1 Set |
Twin-Shaft Shredder
It is an indispensable machine for coarse and fine screening of wet materials in waste treatment. Runding has carried out a series of innovative upgrades on materials and technology, solving previous problems including waste gas emission, material blockage and easy component damage during operation. The twin-shaft shredder processes materials through mutual shearing, tearing and extrusion between upper and lower cutters. It is used for crushing all types of solid waste. Adopting low-speed & high-torque design, it delivers powerful shear force, excellent shredding effect, low noise and stable running performance.
Equipment Overview
Identical to the general introduction above: It is essential equipment for coarse and fine screening of wet materials. Runding has innovatively upgraded its material selection and technology to resolve historical faults such as waste gas, blockage and vulnerable parts. This twin-shaft shredder crushes solid waste via shearing, tearing and squeezing force from paired upper/lower cutters. With low-speed high-torque configuration, it features strong shearing capacity, superior shredding performance, low noise and stable operation.
Core Equipment Features
1. Innovative Three-Chamber Structure
The innovative three-chamber structural design with upper and lower cutters inside the cabinet greatly boosts the output and reliability of the crushing system.2. High Efficiency & Strong Material Adaptability
It achieves high crushing efficiency with finished particle size down to 20mm. It can process materials of all properties including sticky, high-moisture, dirty and mixed waste.3. Stable Operation & Easy Maintenance
The machine runs smoothly and reliably with simple process layout, convenient installation, operation and maintenance. The integrated three-chamber structure delivers outstanding wear resistance and extended service life.
Equipment Parameter
| Overall Dimension | Working Voltage | Ambient Temperature Range | Power Configuration | Design Throughput | Machine Weight |
|---|---|---|---|---|---|
| 2500×2500×1320 (mm) | 380V/50Hz | -20℃～+40℃ | 22KW 3-phase Asynchronous Motor | 20-30 T/H | 1950kg |
Electromagnetic Iron Remover
This magnetic separator specially designed for slag treatment generates strong magnetic attraction to efficiently recover steel scrap from waste materials. It removes ferromagnetic impurities mixed in non-magnetic materials to protect crushers, grinders and other mechanical equipment on conveying systems from damage, and effectively prevents conveyor belt tearing accidents caused by large and long iron pieces.
Equipment Overview
Identical to the general introduction above: Custom magnetic separator for furnace slag treatment generates powerful magnetic force to recycle iron and steel from waste. It eliminates ferromagnetic impurities inside non-magnetic feedstock to safeguard crushers and grinding machines on conveyor lines, and avoids conveyor belt scratches and ruptures triggered by bulky iron fragments. Tiny iron particles and iron compounds inside slag will form dark spots on eco-friendly building materials, downgrading product quality, so iron removal is an essential production step. Runding Machinery has developed a special dry self-discharging electromagnetic iron remover exclusively for slag processing. As a DC electromagnet, its energized coil creates high-intensity magnetic field to lift iron scraps from non-magnetic bulk materials.
Core Equipment Features
1. Complete Equipment Composition
Consists of iron remover main body and automatic iron discharge mechanism. The discharge unit includes frame, motor, reducer, driving & driven rollers and scraper-equipped unloading belt.2. Fully Sealed Self-Cooling Structure
Internal coils are cast with special electrical resin in fully enclosed self-cooling structure, featuring deep magnetic penetration and strong suction to separate ferromagnetic debris from loose non-magnetic materials.3. Stable Working Principle
After power-on, the excitation system generates intense magnetic field. When bulk materials pass under the machine, ferromagnetic particles are adsorbed and continuously carried away by unloading belt. Once materials move out of magnetic coverage, iron pieces fall into collection bins under gravity and inertia.4. Large Throughput & Anti-Blocking Design
Adopts wrapped open magnetic system without material agglomeration or blockage. Single machine handles over 120 tons of raw ore per hour; parallel installation of multiple units can double or triple production capacity.5. Customized Service Support
Runding Machinery provides tailor-made solutions according to customer requirements, delivering reliable and worry-free operation. We also manufacture full series of mining machinery; contact our VIP hotline 18651017423 or follow our official WeChat account for more details.
Application Scenario
| Equipment Name | Core Application | Structure Type | Key Advantage |
|---|---|---|---|
| Dry Self-Discharging Electromagnetic Iron Remover | Furnace slag processing, construction material production | Full sealed resin casting, self-cooling | Strong magnetic penetration, automatic iron unloading, large processing volume |

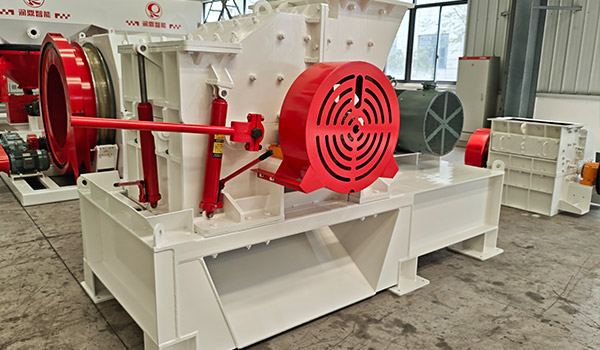

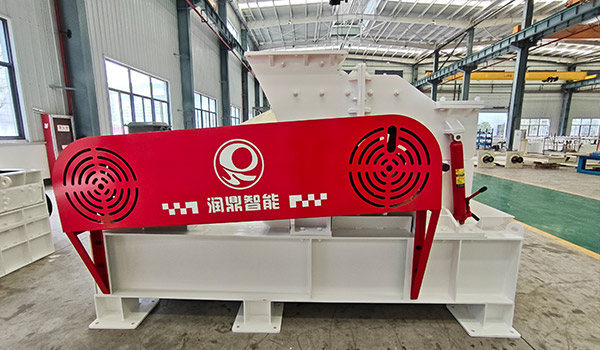

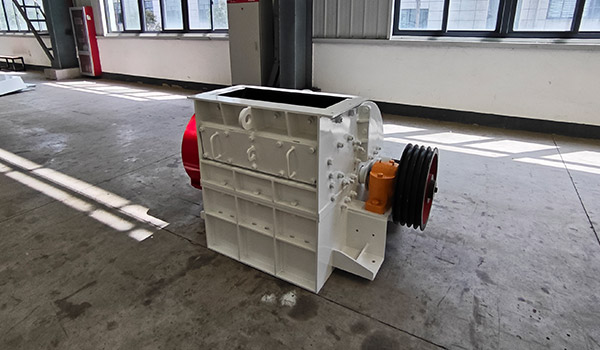

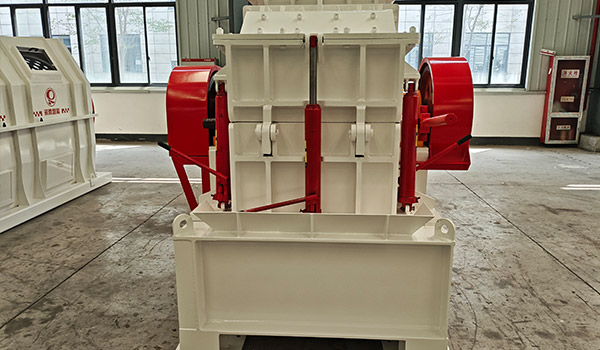

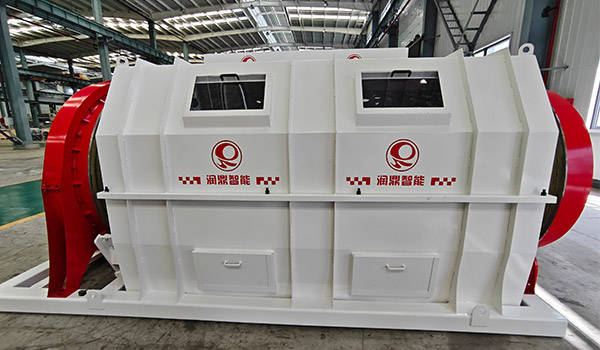

Hammer Crusher
It's mainly used for slag treatment, crushing raw materials with a size range of 0–200 mm. It handles various solid materials including furnace slag, metals, stone materials, and more. You can adjust discharge particle size as needed. Our Runding Slag Research Institute has upgraded its structure, fixing old pain points like loud noise, water leakage, and peculiar odors from materials during operation.
Equipment Overview
Identical to the general introduction above: Designed for slag treatment, processes 0–200mm raw materials such as furnace slag, metals and stone materials. Discharge size is adjustable on demand. Optimized by Runding Slag Research Institute to eliminate noise, water leakage and material odor issues during operation.
Core Equipment Features
1. Tough, Wear-resistant & Easy to Install
The internal working hammers are cast with new technology, featuring strong wear resistance and impact resistance. Hammers are simple to install; when worn out, just open the machine cover for replacement, greatly cutting maintenance workload.2. Sealed Structure, Safe & Eco-friendly
We continuously upgrade manufacturing processes and technology. The fully sealed design finishes crushing in one feeding cycle. It delivers large output, high efficiency, powerful driving force, and energy-saving, low-pollution performance.3. Freely Adjustable Discharge Granularity
Clients can customize discharge particle sizes per production needs, with full coarse, medium and fine output options. Finished products feature uniform, clear grain size, helping you slash material crushing costs.4. Integral Casting, Sturdy & Long-lasting
Runding abandons traditional segmented splicing, adopting integral casting technology. The movable gate is formed in one piece, which looks neat and stands heavy use. Its movable mounting design simplifies disassembly and assembly, lowering labor costs.
Equipment Parameter
| Model | Size Specification | Application Scenario | Output Capacity | Motor Power |
|---|---|---|---|---|
| PS800 | 800mm×900mm | Large bulk materials | 30 tons per hour | 45 KW |
| PS800 | 800mm×900mm | Furnace slag crushing | 120 tons per hour | 75 KW |
| PS800 | 800mm×900mm | Metal crushing | 30 tons per hour | 55 KW |
| PS1000 | 1000mm×900mm | Tailings slag crushing | 60 tons per hour | 90 KW |
| PS1000 | 1000mm×900mm | Iron block crushing | 30 tons per hour | 90 KW |
Counter-Current Wet Magnetic Separator (Wet Iron Remover)
This counter-current wet magnetic separator (wet iron remover) is installed between both ends of the slag conveyor and generates a magnetic field directly underneath. Materials mixed with magnetic and non-magnetic media are fed into the separator, which separates the two components to recover and concentrate magnetic materials and convey them to the discharge end.
Equipment Overview
Identical to the general introduction above: The counter-current wet magnetic separator (wet iron remover) is mounted between the two ends of furnace slag conveyors and creates a magnetic field below the conveying belt. Mixed materials containing magnetic and non-magnetic particles are fed into the machine for separation. Magnetic materials are recovered, concentrated and transported to the other side of the equipment.
Core Equipment Features
1. Innovative Design & Large Processing Capacity
Adopting wrapped open magnetic system, materials will not agglomerate or block the machine. Single unit raw ore handling capacity exceeds 120 tons per hour; multiple units can be connected in parallel to multiply total output.2. Excellent Separation Effect & High Efficiency
Mineral materials slide, shift and tumble on the drum surface without adhesion, benefiting full separation. The rough concentrate grade can be increased by 1–4 times, and primary cleaning concentrate grade can reach over 60%.3. Easy Operation & Flexible Application
Downstream, semi-counter-current and counter-current types are available to match different production demands. It adapts to various materials for multi-purpose use, with simple structure, easy operation and convenient maintenance.
Equipment Parameter
| Equipment Name | Model | Specification | Sealing Condition | Processing Capacity | Power | Quantity |
|---|---|---|---|---|---|---|
| Counter-Current Wet Magnetic Separator | CTN-0512 | Φ500×1200mm | Standard configuration, key components sealed | 20 T/H | 2.2 KW | 7 Sets |

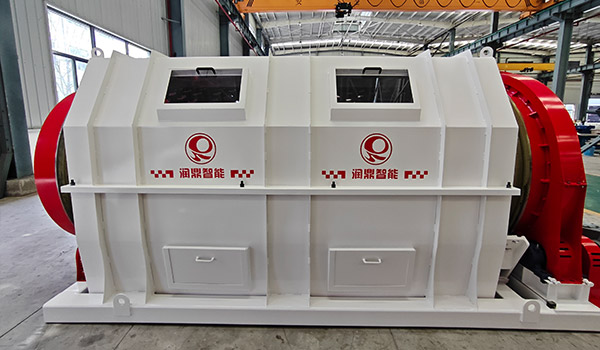

Metal Shredder
It is suitable for crushing waste metal and other materials with a particle size of 0-200mm in slag treatment processes. It can crush various solid materials represented by waste metal, and the discharge size can be adjusted as required. Its structure has been upgraded by the Runding Slag Research Institute, solving the historical problems of loud noise, water leakage and peculiar odor generated by materials during equipment operation.
Equipment Overview
Identical to the general introduction above: Designed for slag treatment, it processes 0–200mm raw materials such as waste metal. Discharge size is adjustable on demand. Optimized by Runding Slag Research Institute to eliminate noise, water leakage and material odor issues during operation.
Core Equipment Features
1. Tough, Wear-resistant & Easy to Install
The internal working hammers are cast with new technology, featuring strong wear resistance and impact resistance. Hammers are simple to install; when worn out, just open the machine cover for replacement, greatly cutting maintenance workload.2. Sealed Structure, Safe & Eco-friendly
We continuously upgrade manufacturing processes and technology. The fully sealed design finishes crushing in one feeding cycle. It delivers large output, high efficiency, powerful driving force, and energy-saving, low-pollution performance.3. Freely Adjustable Discharge Granularity
Clients can customize discharge particle sizes per production needs, with full coarse, medium and fine output options. Finished products feature uniform, clear grain size, helping you slash material crushing costs.4. Integral Casting, Sturdy & Long-lasting
Runding abandons traditional segmented splicing, adopting integral casting technology. The movable gate is formed in one piece, which looks neat and stands heavy use. Its movable mounting design simplifies disassembly and assembly, lowering labor costs.
Equipment Parameter
| Dimension | Working Voltage | Ambient Temperature | Equipment Power | Processing Capacity | Machine Weight | Noise Level |
|---|---|---|---|---|---|---|
| 2820×1970×1500 (mm) | 380V/50Hz | -20℃～+40℃ | 90KW | 50-80T/H | 6500KG | 65-70db |

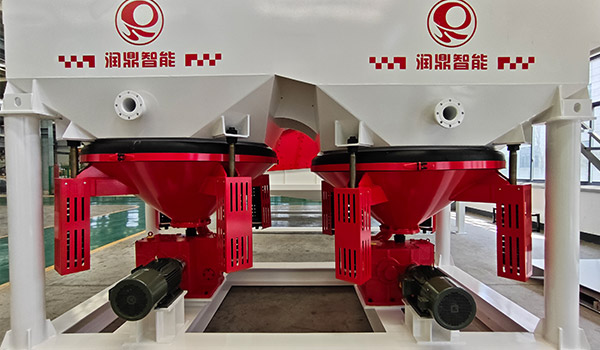

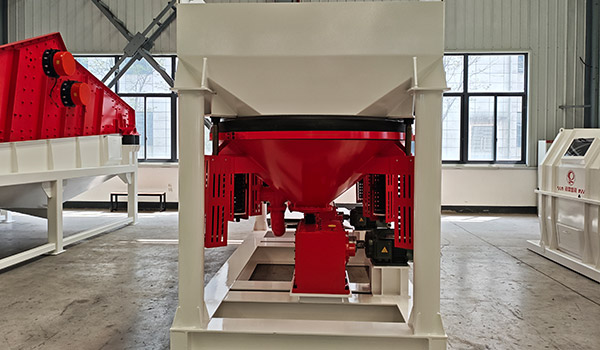

Jig Machine
It recovers metals from fine metal-bearing materials. Lightweight particles flow away with water after crushing, while heavy metals sink into retention compartments to separate most non-ferrous metals including steel, aluminum and copper.
Equipment Overview
Identical to the general introduction above: The jig machine is dedicated to metal recovery from fine metal-laden materials. Light fractions flow out with water during crushing and flushing, while heavy metal substances sink into settling compartments, effectively separating various non-ferrous metals such as steel, aluminum and copper.
Core Equipment Features
1. Full Sedimentation & High Recovery Rate
Camshaft transmission delivers uniform upward water flow and rapid downward flow to loosen the mineral bed and reduce suction force, achieving outstanding separation performance for fine particles and greatly improving separation ratio and metal recovery rate.2. Flexible Adjustment & Low Failure Rate
120mm screen plate height difference between two jig chambers enables flexible adjustment of bed thickness and stroke frequency. Double-chamber double-diaphragm transmission guarantees uniform bed loosening and drastically cuts transmission failure risks.3. Compact Layout & Long Service Life
Compared with traditional jigs, it reduces water consumption by 30%-40% and floor space by 1/3 with adjustable stroke. The cam stroke is upgraded from 25mm to 30mm to extend single cam service life significantly.
Equipment Parameter
| Model | Spec (L×W×H) | Material Volume | Water Supply | Power | Motor Direction | Quantity |
|---|---|---|---|---|---|---|
| TT-210 | 1400mm×1400mm×2300mm | 0.3 m³ | 30 m³/H | 5.5KW | Crusher outlet: 5 left + 5 right | 10 Sets |
| TT-210 | 1400mm×1400mm×2300mm | 0.3 m³ | 30 m³/H | 5.5KW | Tail slag: 2 right | 2 Sets |
| TT-210 | 1400mm×1400mm×2300mm | 0.3 m³ | 30 m³/H | 5.5KW | Fine sand: 2 left + 2 right | 4 Sets |
Eccentric Eddy Current Separator (Aluminum Ejector)
It is non-ferrous metal recycling equipment equipped with an eccentric high-speed magnetic rotor for fine copper and aluminum recovery. It can efficiently separate aluminum-containing materials from non-metallic materials, cut labor costs and boost waste aluminum recovery rate. This machine delivers excellent sorting performance for all types of aluminum-bearing metals, and can process materials of various particle sizes ranging from large aluminum cans to crushed circuit board scraps.
Equipment Overview
Identical to the general introduction above: The Eccentric Eddy Current Separator is non-ferrous metal recycling machinery fitted with an eccentric high-speed magnetic rotor dedicated to fine copper and aluminum recovery. It effectively separates aluminum materials from non-metallic substances, reduces labor input and raises the recovery efficiency of scrap aluminum. It performs well on all aluminum-containing metals, handling materials of diverse sizes from aluminum cans down to crushed circuit board fragments.
Core Equipment Features
1. Simple Operation & Automatic Separation
It realizes automatic separation of metals and non-metals; the reliable single-power design makes the whole system compact and stable.2. Wide Range of Separable Metal Particles
It can process particles ranging from 3mm to 100mm under standard working conditions.3. Easy Installation & Customizable Design
Customized according to customers’ demands, it can be seamlessly matched with both newly-built and existing production lines.4. Stronger Eddy Current Force
Adopting proprietary magnetic force technology, it provides far better sorting performance than conventional similar machines.
Equipment Parameter
| Equipment Name | Model | Specification | Sealing Condition | Processing Capacity | Power |
|---|---|---|---|---|---|
| Eccentric Eddy Current Separator | ECS-180P | Effective Belt Width: 1500mm | Standard configuration, key components sealed | 30 T/H | 5.5+2.2 KW |
| Vibratory Feeder | ZD-145 | Hopper Inner Width: 1450mm | None | 30 T/H | 0.75×2 KW |

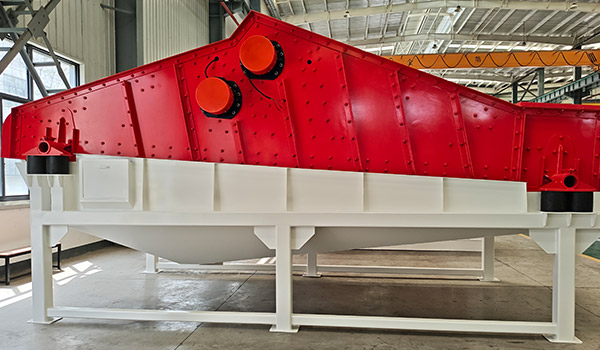

Vibrating Screen
It is specially designed for high-moisture furnace slag aggregate production after crushing. Runding Slag Equipment Research Institute has fully upgraded material and manufacturing techniques to eliminate frame fatigue damage and unstable moisture control issues. It uses vibration motor excitation to toss materials upward and drive linear forward movement over matched screen mesh to complete classification.
Equipment Overview
Identical to the general introduction above: The vibrating screen serves slag aggregate production lines with strict moisture requirements after crushing. Runding’s professional slag equipment institute has comprehensively optimized materials and craftsmanship to solve structural internal damage caused by long-term vibration and out-of-control moisture problems. It adopts vibration motor excitation principle to lift materials on screen surface and push them forward linearly, cooperating with matched screen mesh to achieve precise material classification.
Core Equipment Features
1. Simple Structure & Easy Operation
Compact design with tight sealing, low noise and easy maintenance. Lightweight assembly allows single-person operation.2. Stable Running & High Efficiency
Elliptical vibration track delivers smooth operation and low power consumption, with larger screening area and higher processing capacity than competing brands.3. Innovative Design & Flexible Adjustment
Unique screen frame design enables full mesh replacement within only 3–5 minutes. Compatible with nylon, special polymer and PP mesh for particle screening, grading, impurity removal and filtration.4. Large Processing Capacity
Side rubber screening plates added at feed inlet expand throughput, fully utilizing internal space to prevent material loss.
Equipment Parameter
| Model | Spec (L×W) | Sealed Structure | Output Capacity | Power | Quantity |
|---|---|---|---|---|---|
| ZS6024 | 6m×2.4m | Yes | 50 T/H | 3.7KW×4 | 3 Sets |
Sand Water Separator
This sand-water separation equipment is mainly used to efficiently separate sand from water after furnace slag crushing. It features a small floor area, supports continuous operation, and the material moisture content can be adjusted as required.
Equipment Overview
Identical to the general introduction above: The sand-water separation unit is specially designed to separate sand from water-bearing materials after furnace slag crushing. It occupies little space, runs continuously, and the final moisture content of output materials can be adjusted according to production demands.
Core Equipment Features
1. Large Processing Capacity & Low Operating Cost
The single machine output can reach 200 tons per hour, fully meeting sand washing demands of most customers. The equipment has low manufacturing cost and low power consumption, effectively cutting production costs.2. Integrated Functions & High Cleaning Degree
This machine integrates three functions: washing, dewatering and grading. During operation, the impeller drives sand and gravel to rub against each other to remove surface impurities, break the water film wrapped around sand grains, and complete thorough cleaning with powerful water flow.3. Simple Structure & Low Failure Rate
This sand washer boasts a simple structure. Its impeller bearing assembly is isolated from water and wet materials. The innovative sealing structure and fully enclosed oil bath transmission device greatly prevent bearing damage caused by water immersion, sand and pollutants.
Equipment Parameter
| Model | Specification | Sealed Design | Output Capacity | Motor Power | Quantity |
|---|---|---|---|---|---|
| SS180 | Diameter: 1.8m, Width: 0.3m (Max working width: 1.3m) | Yes | 5 T/H | 1.5KW | 1 Set |
Precision Sand Settling Machine
It separates sand particles of different sizes slowly through ten layers with distinct sedimentation particle sizes. Large low-density materials stay on the top layer while finest sand grains (minimum 5μm, same as flour) sink to the bottom. Suspended solids in wastewater settle by gravity to separate from water and purify water quality. Featuring excellent separation effect and easy operation, it is critical wastewater treatment equipment.
Equipment Overview
Identical to the general introduction above: This precision sand settling unit adopts ten-layer slow sedimentation design to accurately classify sand grains of different sizes. Each layer retains different particle fractions: large low-density substances float on the uppermost layer, and ultra-fine sand particles down to 5 microns settle to the bottom. Suspended settleable solids drop under gravity to separate from wastewater for clean water output. It delivers outstanding separation performance with simple operation, serving as core equipment for polluted wastewater treatment.
Core Equipment Features
Indispensable equipment for slag sand separation projects. Runding has completed material and technical innovations to eliminate frequent blockage failures and stabilize internal material flow during continuous operation.
Equipment Parameter
| Overall Dimension | Sealed Structure | Effective Volume | Machine Weight | Processing Capacity |
|---|---|---|---|---|
| 12740×5240×3110 (mm) | Yes | 3 m³ | 14200kg | 5-15 T/H |
Membrane Filter Press
It is a filter press fitted with an elastic membrane between filter plates and filter cloths. After feeding is finished, high-pressure fluid or gas medium can be injected into the membrane plates. The whole membrane will expand to squeeze the filter cake and realize further dewatering of the cake, which is commonly known as squeeze filtration.
Equipment Overview
Identical to the general introduction above: The Membrane Filter Press is a type of filter press equipped with an elastic membrane sandwiched between filter plates and filter cloths. Once feeding is completed, high-pressure fluid or gas is injected into the membrane plates, inflating the full membrane to compress the filter cake for advanced dewatering, a process widely referred to as squeeze filtration.
Equipment Overview
Identical to the general introduction above: The Membrane Filter Press is a type of filter press equipped with an elastic membrane sandwiched between filter plates and filter cloths. Once feeding is completed, high-pressure fluid or gas is injected into the membrane plates, inflating the full membrane to compress the filter cake for advanced dewatering, a process widely referred to as squeeze filtration.
Core Equipment Features
1. High Squeezing Pressure, Corrosion Resistance, Easy Maintenance & Safe Operation
The membrane filter press delivers high squeezing pressure, excellent anti-corrosion performance, convenient maintenance and reliable safety performance.2. Robust Reinforced Polypropylene Filter Plates
Filter plates are molded from reinforced polypropylene. The membrane is embedded firmly into polypropylene plates, featuring stable structure, anti-drop performance and long service life.3. Full Automatic Control of Entire Process Cycles
It supports automatic control of all working procedures including filter plate clamping, filtration, squeezing, back blowing, washing, plate releasing and cake discharging.
Equipment Parameter
| Equipment Name | Specification | Power | Quantity |
|---|---|---|---|
| Membrane Filter Press | Filter Area: 500 ㎡ | 12.2KW | 6 Sets |
PLC Automation Equipment
Equipped with runding self-developed intelligent gateway (universal access module), it enables customers to easily connect equipment to the cloud or other devices and monitor equipment status in real time. The runding intelligent gateway supports most existing mainstream protocols and standards (Modbus, EtherNet, DNP3.0, SNMP, HTTP, as well as communication protocols for Siemens, Omron, Mitsubishi, Delta and other brands). It also supports other industry standards and customized protocols, allowing mutual communication between devices with different communication protocols.
Equipment Overview
Identical to the general introduction above: Relying on runding independently developed intelligent gateway (universal access module), customers can connect all equipment to cloud platforms or other machinery effortlessly and view real-time equipment operating status remotely. The gateway is compatible with most mainstream industrial protocols including Modbus, EtherNet, DNP3.0, SNMP, HTTP, and matches communication standards of Siemens, Omron, Mitsubishi, Delta PLCs. It also supports customized private protocols, realizing interconnection between devices running different communication protocols.
Core Equipment Features
1. Real-time Equipment Status Monitoring
The runding intelligent gateway stores the latest equipment status data and uploads it to IACloud for reading or parameter configuration. The equipment remains logically online to customer application systems even when disconnected from the network. Users can read historical operating status offline and preset device parameters, which will be automatically executed once the network re-establishes connection.2. Remote Equipment Control & Operation
The remote communication function of runding intelligent gateway collects PLC data to monitoring terminals (PC, iPad, etc.). The client tool installed on monitoring terminals builds a dedicated secure channel connecting to runding intelligent gateway. Users can rapidly filter and convert equipment data according to self-defined business rules and execute localized operations on the collected data.
Equipment Parameter
| Equipment Name | Supported Protocols | Applicable PLC Brands | Core Function |
|---|---|---|---|
| PLC Automation Intelligent Gateway | Modbus / EtherNet / DNP3.0 / SNMP / HTTP | Siemens, Omron, Mitsubishi, Delta | Remote monitoring, data collection, cloud connection |
Scraper Conveyor
It is widely used in electronics, machinery, food, printing, tobacco, plastic and other industries for assembly, inspection, packaging and material transfer. It also acts as an ideal high-efficiency continuous conveying machine for furnace slag treatment production lines.
Equipment Overview
Identical to the general introduction above: The scraper conveyor is a universal transport machine for assembly, testing, packaging and logistics across multiple industries, and it is also a perfect continuous conveying solution for furnace slag processing systems.
Working Principle
The closed-loop chain is driven by head driving shaft and tail passive shaft with guide rails and pressure plates installed in the middle. Power drives the head shaft to pull the chain-mounted scrapers forward, which push materials on the base plate toward the discharge outlet to complete continuous conveying.
Equipment Parameter
| Product Spec | Working Voltage | Ambient Temp Range | Power Configuration |
|---|---|---|---|
| Width 500mm × Length 13.75m | 380V/50Hz | -20℃～+40℃ | YE2-135M-4 7.5KW, 1440r/min B5 Motor + BWD4-35-7.5KW Cycloidal Pinwheel Reducer |
Applications of Recovered Products
Recovered Metals
The recovered metals include:
Scrap Steel, Iron, Aluminum, Copper, Stainless Steel, Other Non-ferrous Metals.
These recovered metals can be sold directly to metal recycling and smelting companies, enabling efficient resource recovery and promoting a circular economy.
Scrap Steel, Iron, Aluminum, Copper, Stainless Steel, Other Non-ferrous Metals.
These recovered metals can be sold directly to metal recycling and smelting companies, enabling efficient resource recovery and promoting a circular economy.
Recycled Aggregates
After processing, the recycled aggregates can be widely used in the production of:
Permeable Bricks, Pavement Bricks, Concrete Products, Road Base Materials, Cement-Stabilized Base Materials, Municipal Infrastructure Projects, Landscape Engineering, Eco-friendly Building Materials.
The high-quality recycled aggregates provide an environmentally sustainable alternative to natural aggregates, helping conserve natural resources while supporting green construction and infrastructure development.
Permeable Bricks, Pavement Bricks, Concrete Products, Road Base Materials, Cement-Stabilized Base Materials, Municipal Infrastructure Projects, Landscape Engineering, Eco-friendly Building Materials.
The high-quality recycled aggregates provide an environmentally sustainable alternative to natural aggregates, helping conserve natural resources while supporting green construction and infrastructure development.
Why Choose Runding Intelligent?
Complete Turnkey EPC Solutions
We provide comprehensive turnkey EPC services covering process design, equipment manufacturing, installation, commissioning, technical training, and operational support, delivering complete bottom ash recycling solutions from concept to operation.
Customized Process Design
Each production line is tailored to the customer’s specific requirements based on local municipal waste composition, bottom ash characteristics, and processing capacity, ensuring optimum performance, maximum recovery efficiency, and the best return on investment.
High-Efficiency Separation Technology
By integrating multi-stage magnetic separation, eddy current separation, gravity separation, and intelligent screening technologies, our production line achieves highly efficient recovery of ferrous metals, non-ferrous metals, and recycled aggregates.
Intelligent Automation
The entire production line is equipped with an advanced PLC automatic control system, enabling centralized operation, real-time monitoring, process data management, fault diagnosis, and remote operation & maintenance.
Environmentally Friendly & Energy-Efficient Design
Our production line is designed to meet modern environmental standards and features:
- ● Fully enclosed material conveying
- ● High-efficiency dust collection system
- ● Closed-loop water recycling
- ● Low energy consumption
- ● Compliance with environmental protection and emission standards
Stable and Reliable Operation
The equipment is built with a heavy-duty design, while key mechanical and electrical components are sourced from internationally recognized brands, ensuring stable performance, easy maintenance, and long service life.
High-Quality Recycled Products
The processed recycled aggregates achieve a metal removal rate of over 99%, meeting the quality requirements for manufacturing eco-friendly building materials while maximizing the value of recovered resources.
Main Equipment
